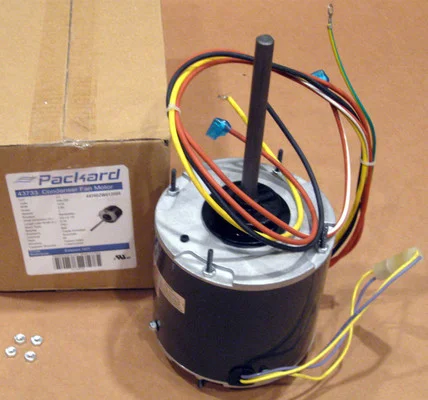

3733 1/3 hp 1075 RPM 230 Volts Air Conditioner Condensor Fan Motor TENV

Description

Packard Motor Part Number 43733.

Replacement for GE Numbers:

• 3729
• 3733
• F48G94A76
• B13400-248

Motor Specifications:

• 1/3 HorsePower
• 230 Volts Single Phase
• 2.8 Amps
• 1075 RPM
• Single Speed
• Electrically Reversible
• All Angle Mounting
• 5-5/8″ Diameter
• 48 Frame
• Totally Enclosed
• 4-7/8″ Body Length
• 1/2″ x 6″ Shaft (can be cut down with a hacksaw if needed).
• Bearing Bearing
• Thermally Protected
• Capacitor Start, requires a 7.5 mfd 370 vac capacitor
• Capacitor is not included
• Wiring Diagram Printed on Motor

This motor is a permanent split capacitor (PSC) type, featuring single-speed operation and reversible rotation. It’s designed for durability with ball bearings and automatic overload protection.
